ChrisF's learner(!) project

The writeup

Well, here it is. My first attempt at a controller.  I want to build a cabinet and needed a smaller project to learn with, here it is.

It uses 2 PowerRamps and a mouse spinner.

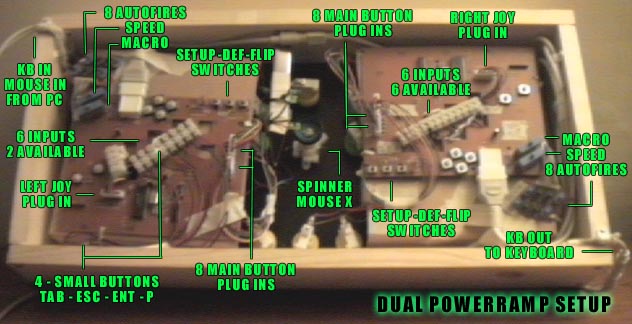

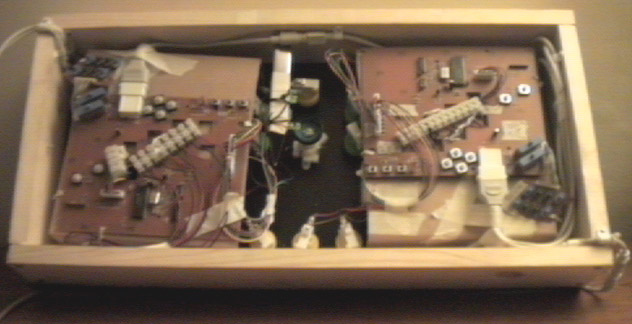

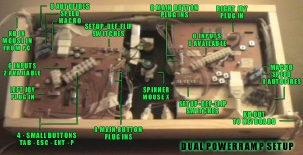

The inside is a bit cramped as I had built the box before receiving the p-ramps. They were bigger than I thought, but I got them in!

I used cardboard risers to mount the p-ramps so they don't short out againt the underlying button micro switches.

The black top is a 12X24 inch piece of shelving.  I used it becuase the surface is made with a plasticlike scratch resistant coating. The box is just cheap pine.

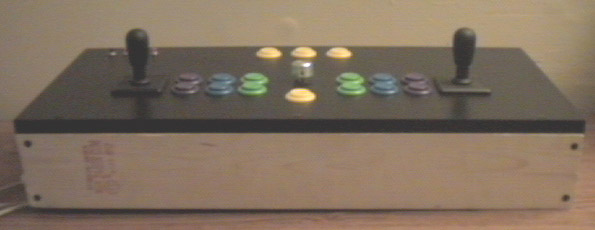

The front view - click for a larger picture!

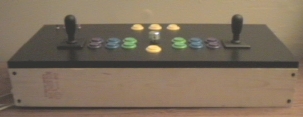

The front view
click for a larger picture


Control Panel Front
click for a larger picture

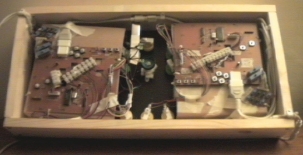

Control Panel Back
click for a larger picture
